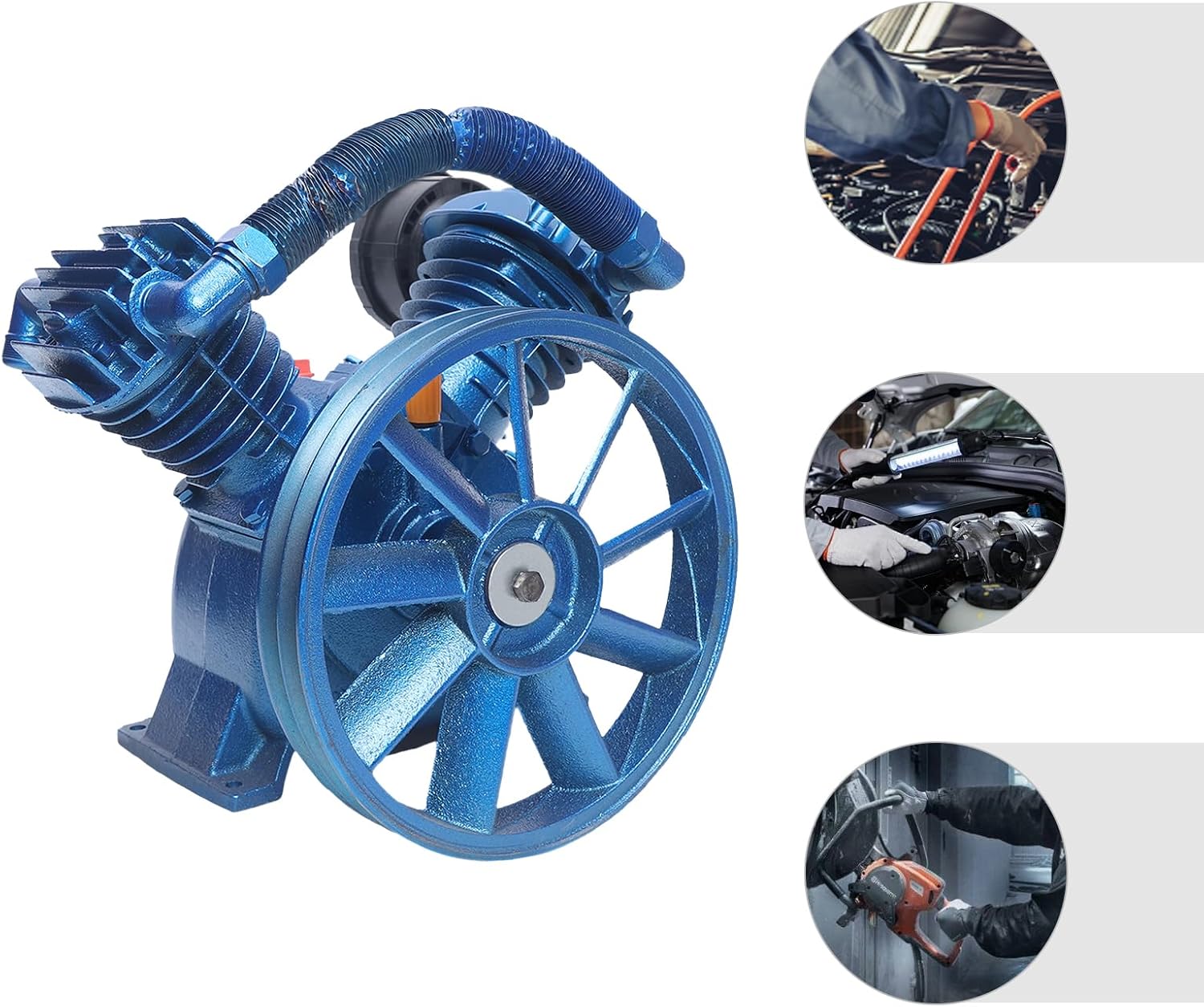

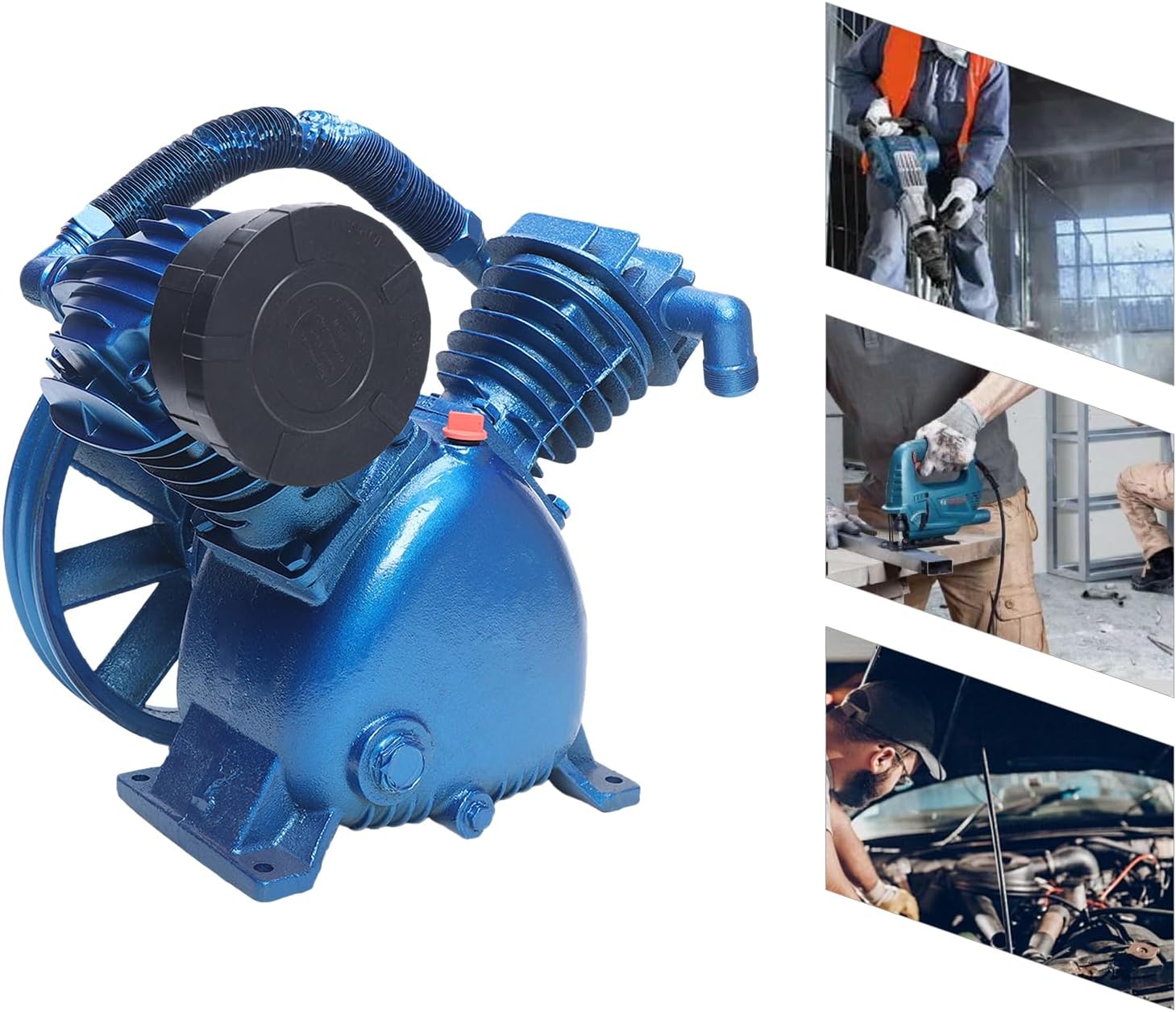

Air Compressor Head Pump, 175 PSI Twin Cylinder Air Compressor Pump, 21CFM V-Type Air Compressor Head Pump Double Stage,Cast Iron Low Noise(Style 2)

Specifications: Air Delivery: 21Cfm(0.6m³/h)Rated Pressure: 175 Psi (1.16Mpa)Driving Power: 4Kw (5.5Hp) Pump Speed: 800RpmCylinder Diameter: 3.54" (90mm)Distance Of Screw Hole: 26cm*14cm (10.2"*5.5")Rated Exhaust Volume: 0.6L/MinNote: If The Motor Speed Is 2880rpm, The Diameter Of The Motor Wheel Is 10 Cm. If The Motor Speed Is 1440rpm, The Motor Wheel Is 20 CmInstallation Notes:1、 When Placing The Pump Head, The Motor Pulley And The Belt Pulley Must Be In The Same Straight Line. The More Aligned, The Less Vibration.2、 Tighten The Screws (Including The Base And Pulley Screws).3、 After The Screws Are Installed, The Belt Shall Be Tightened. If The Belt Is Loose, Please Move The Motor. After The Screws Are Tightened, Reinstall The Belt.4、 The New Machine Must Be Filled With Engine Oil Before Starting, And The Engine Oil Shall Be Added To The Center Of The Red Point Of The Oil Mirror.5、 The Rotation Direction Of The Pump Head Is Clockwise. If It Reverses, Please Adjust It In Time.6、 Change The Oil For The First Half Month, The Second One And a Half Months, And The Next Two To Three Months.7、 Replace The Air Filter Regularly. Under Normal Conditions, It Must Be Replaced In Two To Three Months, And In Case Of Poor Environment, It Must Be Replaced In One Month.8、 The Operation Of The Machine Will Produce High Temperature, Be Careful Not To Burn!Item Included:1* Air Compressor Pump Head

• 【Air Compressor Head Pump】The air compressor head motor with proven driven design is greatly for excellent compression and smooth running. Air Delivery: 21Cfm(0.6m³/h); Rated Pressure: 175 Psi (1.16Mpa); Driving Power: 4Kw(5.5Hp); Pump Speed: 800Rpm; Cylinder Diameter: 3.54" (90mm); Distance Of Screw Hole: 26cm*14cm (10.2"*5.5"); Rated Exhaust Volume: 0.6L/Min.
• 【Premium Quality】Equipped with an iron construction & complete accessories, which features efficient installation. This pump head is designed for a long time use and is easy for maintenance.
• 【Special Valve】Special valve steel is used for hair piece, which has good strength and toughness at high temperature.faster Inflation and low noise.strong cooling blade, good cooling performance.
• 【Advanced Design】The V-style cylinder design for superior cooling, reduces moisture and extends the life of the air compressor pump. With the high exhaust efficiency, low noise, smooth operation and less fuel consumption, it’s a great choice for you.
• 【Wide Application】The air compressor pump is widely used for chemical industry, light industry, textile, food processing, health, electronics, machinery, mining, construction, scientific research and other requirements of high-quality compressed air sector. Note: If The Motor Speed Is 2880rpm, The Diameter Of The Motor Wheel Is 10 Cm. If The Motor Speed Is 1440rpm, The Motor Wheel Is 20 Cm.
